此類型專用低溫安全閥主要用于低溫介質管路安全排放系統，具有開關靈活、密封可靠的特點。
These low-temperature stopping valves are mainly used in pipeline systems with low-temperature and deep cold mediums.featured in its flexible operation and reliable sealing.
設計溫度/Design temperature:-196℃～+80℃
適用介質/Applicable medium:LNG 、LO2、LN2、LAr
連接方式/Connection method:螺紋
公稱通徑/Nominal diameter:10mm
| 主要零部件名稱 Main components name | 材料 Materials | |
| 閥體/Valve body | ZG0Cr18Ni9 | |
| 彈簧/Spring | 1Cr18Ni9 | |
| 主密封件/Main seal | PTFE | |

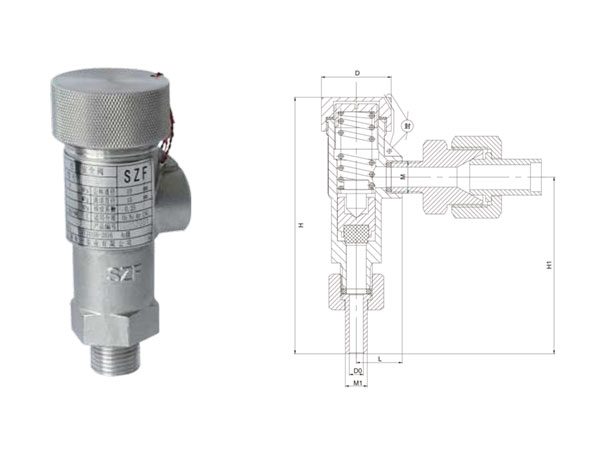

| 型號/Model | 主要外形和連接尺寸/Main form and the connection size (mm) | 公稱壓力 | ||||||
| H | H1 | M | M1 | L | D | D0 | ||
| DA-10P/C | 95 | 56 | M16*1 | M16*1 | 23 | Ф35 | Ф8 | 0.88 |
| DA-10P/C1 | 95 | 56 | M16*1 | M16*1 | 23 | Ф35 | Ф8 | 1.76 |
| DA-10P/C2 | 95 | 56 | M16*1 | M16*1 | 23 | Ф35 | Ф8 | 2.35 |
